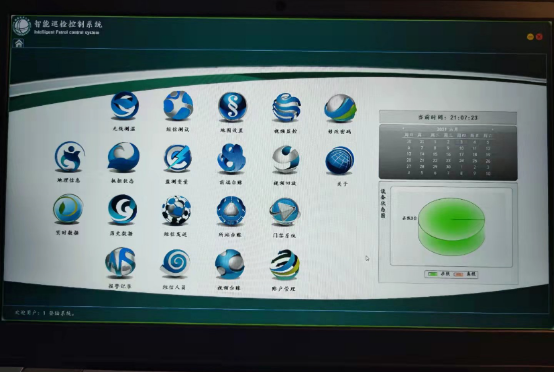

Product name: Comprehensive monitoring and intelligent inspection system of switching station
Model Number:JCCX-02L
Features:
1. Comprehensive collection of environmental and fire information
2. Collection of harmful gas concentration and oxygen content
3, High voltage bus, cable connector, moving contact temperature acquisition
4, Wireless collection of transformer oil temperature/winding temperature
5. Access control and video collection
6, High and low voltage switch cabinet switch status monitoring, local discharge monitoring
7. Over-limit warning and alarm management
8, all-round closed-loop processing mechanism, such as exhaust, dehumidification, drainage, lighting, etc
Technical indicators
Power input: AC220V±10% 50Hz
Total power: < 40W
Ambient temperature: -25 ° C to 65 ° C
Ambient humidity: ≤95%RH
Level of protection: IP65
Installation: wall mounted
Local display: OLED 256*64
Communication ports: 3 RS485, 2 CAN, 1 Ethernet, 433M and 4G wireless communication
Communication protocols: Modbus-RTU,Modbus-TCP, and custom TCP/IP
VPN service: Supports VPN networking of carriers
Hardware port: 8 channels digital input, 5 channels relay output, analog input/output can be expanded

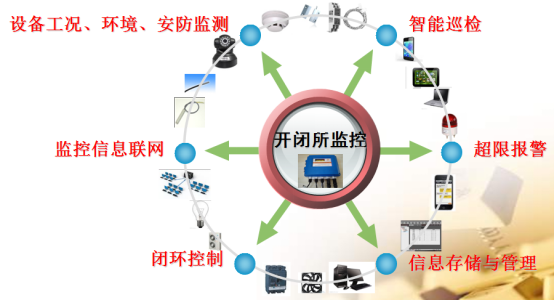

System architecture

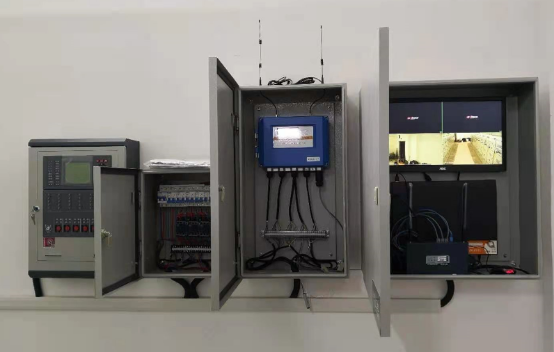

Installation examples
