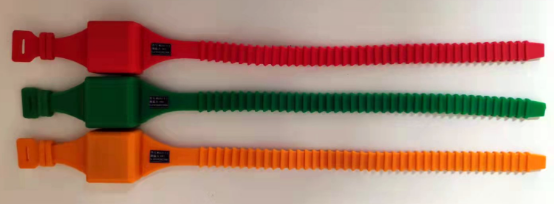

Product 3:Switch cabinet wireless temperature sensor
Product model:JC-WST-13T
Product description
Switch cabinet wireless temperature sensor is mainly to solve difficult problems of temperature monitoring for high voltage switchgear, low voltage switchgear, transformer and other electric contact, this product is composed of temperature sensor, signal conditioning amplifier, logic control circuit, wireless interface, etc., built-in antenna and super capacity battery, service life up to 3-5 years. Easy installation, cabling free, maintenance-free, reliable insulation, widely used in opening and closing, power distribution room, ring network cabinet, hydropower station, thermal power plant, steelmaking and other special places.
Technical parameters
Power mode |
lithium battery |
Service life |
3~5 years |
Operating range |
-20~125℃ |
Operating condition |
-20~85℃ |
Accuracy |
≤±1℃ |
Sampling period |
1min |
Data transmission period |
Default 5min(Temperature change exceeds 2℃,1min) |
Transmitting power |
20db |
Output signal |
433M |
Transmission distance |
≤30m |
Antenna |
Built-in |
Installation |
bundled |

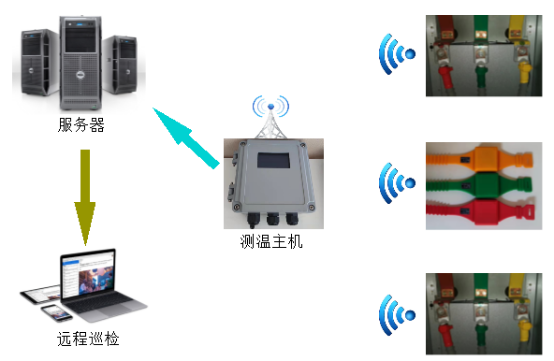

System architecture
