Detailed instructions of Product 1

Product pictures：

Features:

1. Fully monitor environmental information

Online monitor the ambient temperature, humidity, water immersion, condensation, cable trench water level, harmful gas concentration, oxygen content and other information in the power distribution station room.

2, comprehensive monitoring security information

Online monitoring of power distribution station room access control, equipment theft, smoke, fire and other security information.

3, comprehensive monitoring  equipment operating information

Online monitoring temperature  of power distribution station room cable joint, circuit breaker status, contact temperature and other equipment operating information.

4, closed-loop control environment conditioning function

Intelligent multi-variable automatic closed-loop control of ventilation units, industrial air conditioners, dehumidifiers, water pumps, lighting and other conditioning equipment, automatic start and stop threshold can be set.

5, overload warning, fault alarm function

In case of over-limit event, the system can give alarm in real time on the monitoring computer or intelligent handheld terminal, and send alarm message to the relevant responsible person.

6. Intelligent inspection function

The intelligent inspection terminal receives the inspection instructions and automatically conducts intelligent inspection after the inspection is completed. The inspection information can be combined with the equipment account, geographic information, inspection and maintenance information, and work tickets. The inspection information can be uploaded to the database.

7. Full-featured background software

The system has a software platform, monitoring data intuitive display on the interface. At the same time, the data is stored in the database, and the data can be queried, retrieved, counted, analyzed and reported, supporting the open expert auxiliary diagnosis system and linkage inspection and maintenance plan system.

parameters

1. Type: Standard 19-inch cabinet

2, size: WIDTH * depth * height (mm) 600*1000*1875 (letter caster)

3, material: cold rolled steel plate/stainless steel, plastic spraying

4. Level of protection: IP20

5, installation site: switching station, power distribution room, warehouse, workshop, etc

6, system power supply: AC 220V/380V

7, operating environment temperature: -25℃ ~ 65℃

8, operating environment humidity: ≤95%RH

9, display module: 10.2 inch true color TFT LCD display

10. Main control module: 1U structure, 10 channels RS-485, 2 channels CAN

11, communication module: 1U structure, support Modbus-RTU protocol,Modbus-TCP protocol, user-defined TCP/IP protocol, support VPN network of operators, support 4G (can expand 5G) SMS alarm service

12, input module: 1U structure, support 32 channels of digital input, 240 channels of wireless input, can expand the analog input

13, output module: 1U structure, support 16 relay output

14. Built-in modules: power supply and distribution module, PDU module, backup power module, KVM module, air conditioner module, fire fighting module, video module, local discharge module, optional.

15, sensor: optional temperature, humidity, wireless temperature and humidity, smoke sensor, water level, noise, gas, temperature sensing cable, wireless temperature sensor and other types of sensors.

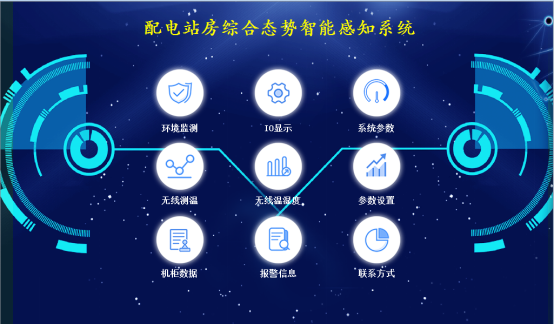

System framework

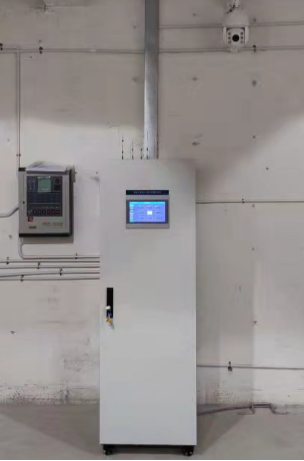

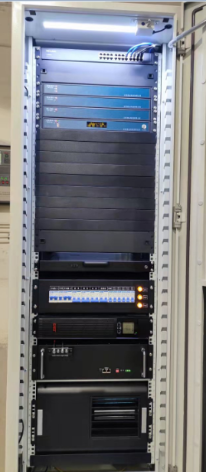

Installation examples
