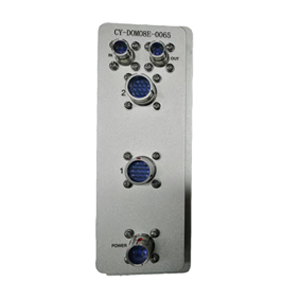

Product Model
|
CY-AII08E-0065 |
|
CY-DIM16E-0065 |
|
CY-DOM08E-0065 |
|
CY-PWM08E-0065 |
The EtherCAT module of CY series is a real-time Ethernet module specially designed for special industries and high-end application industries. The waterproof lamp grade is IP65. It has been strengthened through a series of design, such as vibration, high and low temperature test, simulation calibration and so on.
Interface parameters
|
Bus protocol |
EtherCAT |
|
I/O number |
— |
|
Data transfer medium |
Ethernet CAT5 cable |
|
Bus interface |
2*M8 |
|
Data transfer rates |
100Mb/S |
|
Distance between stations |
Max. 100 m (100BASE-TX) |
|
Electrical isolation |
Yes |
Technical parameters
|
Power supply |
24VDC（18～36VDC） |
|
Rated current |
50mA |
|
Weight |
790g |
|
Size |
210*75*45cm |
|
Level of protection |
IP65 |
|
Operating temperature |
-40～85℃ |
|
Storage temperature |
-40～85℃ |
|
Relative humidity |
≤95%RH，no condensation |
|
Installation |
screwed |
Configuration parameters
|
Digital input CY-DIM16E-0065 |
Number of inputs |
16 |
|
Nominal voltage |
24VDC |
|
|
Voltage range |
0～30VDC |
|
|
“1” signal voltage |
10～30VDC |
|
|
“0” signal voltage |
≤1VDC |
|
|
Typical input current |
7mA（24VDC） |
|
|
Isolation type |
optocoupler |
|
|
Digital output CY-DOM08E-0065
|
Nominal voltage |
24VDC（±20%） |
|
Number of outputs |
8 |
|
|
Signal types |
PNP |
|
|
Load type |
Resistance/inductive, lamp |
|
|
Rated current of one channel |
Max：500mA |
|
|
Port protection |
Overvoltage and overcurrent protection |
|
|
Channel indicator light |
Green LED |
|
|
PWM output CY-PWM08E-0065 |
Nominal voltage |
24VDC（±20%） |
|
Number of outputs |
8 |
|
|
Signal types |
NPN |
|
|
Load type |
Resistance/inductive, lamp |
|
|
Rated current of one channel |
Max：1200mA |
|
|
Resolution |
11 bits |
|
|
Port protection |
Overvoltage and overcurrent protection |
|
|
Analog CY-DOM08E-0065 |
Number of inputs |
8 |
|
Number of output s |
0 |
|
|
Signal voltage/current |
4～20mA |
|
|
Resolution |
16 bits |
|
|
Conversion time |
1ms |
|
|
Accuracy |
±0.1% |
|
|
Internal resistance
|
125Ω |
