Introduction

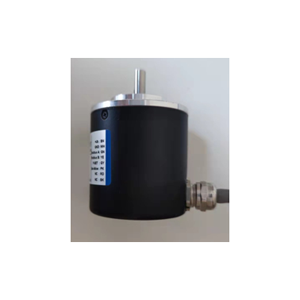

Absolute encoder can accurately and real-time grasp the physical location information of mechanical equipment in the application of motion control system, and will not lose the absolute location information of equipment in the state of power supply loss. The company's customized encoder internal absolute value plate, all digital value, intelligent software setting, multi-address, baud rate, resolution, direction setting, easy to install, no need to change, support with multi-brand PLC and host computer equipment connection.
The product is often used in cranes, elevators, machine tools, 3D printers, automatic assembly lines, industrial robots and other equipment height, stroke, Angle, speed accurate measurement。
Operating voltage
5VDC，10～30VDC
Measuring range
0～360°
Maximum resolution
14位（16384）
Level of protection
IP54/IP65
Protected mode
Reverse polarity protection, surge protection, ESD protection
Main body material
Aluminum alloy
Spindle material
Stainless steel
Operating temperature
-20～85℃
Storage temperature
-30～85℃
Humidity
95%RH，No condensation
Boundary dimension
φ38、φ50、φ58、φ100
Output signal
4-20mA、CAN2.0B、CANopen、Modbus-RTU
