Product 7: Intelligent Iot Gateway
Product model: JC-WG-100CT
Product description
Intelligent Iot gateway is designed for industrial data acquisition and application processing. The conversion channel between different protocols can be constructed so that different network nodes can be concentrated in the same network to realize the interconnection of everything. The product uses an ARM Cortex-M4 architecture processor and is designed according to industrial design, featuring high stability, high speed, low latency, wide temperature support, and wide voltage input.
This product has many hardware interfaces and various types. The wired network supports a variety of general field buses, and the wireless network supports the network access of three major operators. The software supports a variety of communication protocols, including Modbus-RTU, Modbus-TCP, Canopen, TCP/IP, MQTT and other general protocols, and supports customized protocols and interfaces. It can be applied to industrial Internet of things, smart factory, smart power, security monitoring and other industries.
Technical parameters
Power supply |
Input votage |
DC 10~36V |
Power consumption |
150mA(DC12V) |
|
RS232 |
number |
1 |
protocol |
Modbus-RTU |
|
RS485 |
number |
3 |
protocol |
Modbus-RTU |
|
CANBus |
number |
2 |
protocol |
CAN2.0/CANopen |
|
Ethernet |
number |
1 |
protocol |
Modbus-TCP、TCP/IP、MQTT |
|
4G |
antenna interface |
SMA |
L-CE version |
GSM/EDGE、WCAMA、TD-SCMDA、FDD-LTE、TDD-LTE |
|
protocol |
TCP/IP、MQTT |
|
NBIOT |
net |
HD-FDD-LTE |
protocol |
MQTT |
|
conditions |
operating temperature |
-40~85℃ |
storage temperature |
-40~85℃ |
|
Housing and installation |
housing |
Metal |
installation |
wall-mounted |

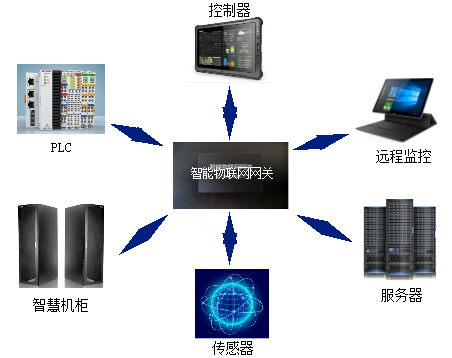

System architecture
